Pipe cutting and beveling machine rental for offshore and industrial use.

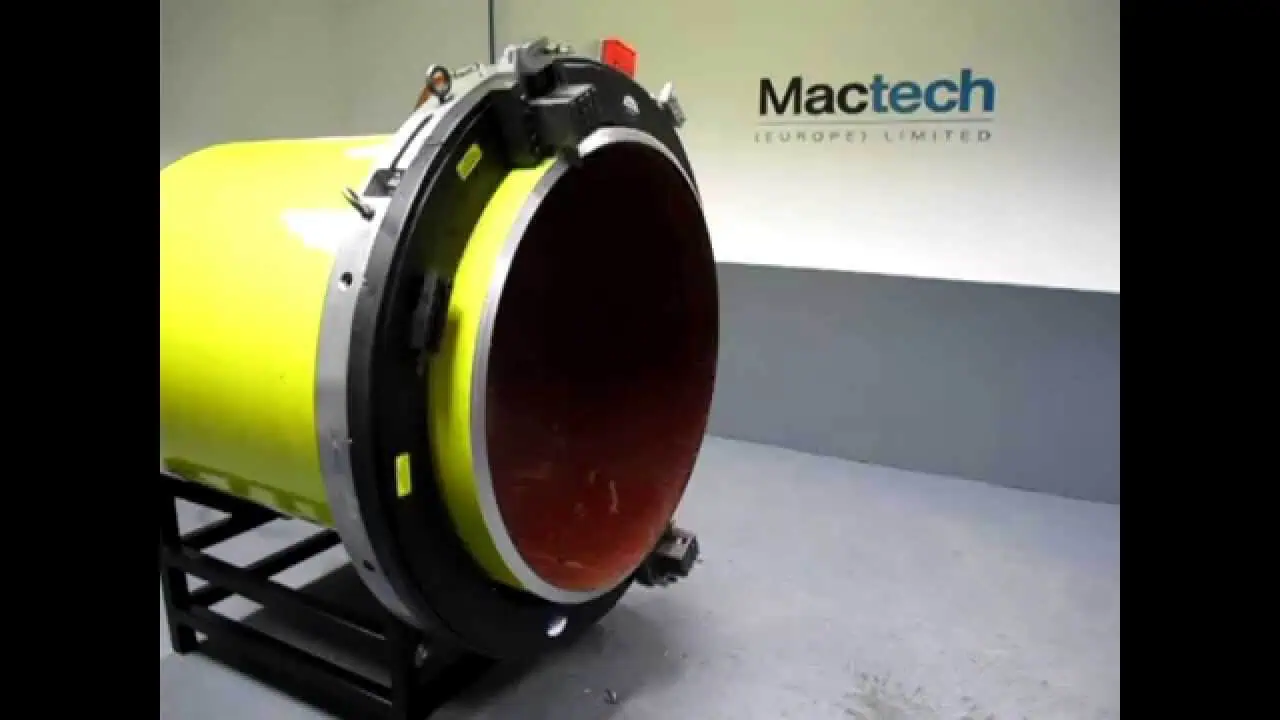

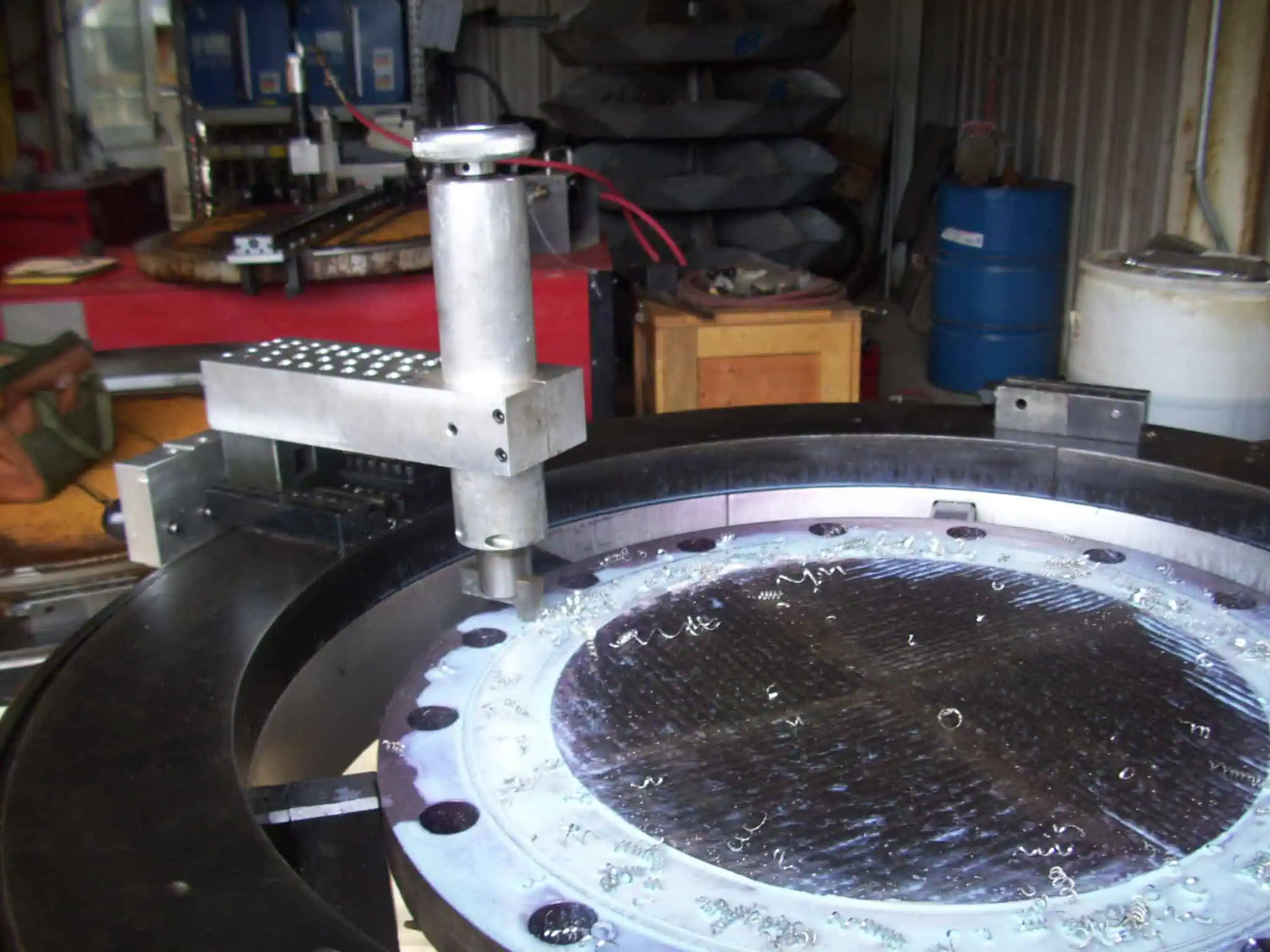

Mactech’s Clamshell Portable Lathes offer precise, spark-free cutting and beveling for pipes ranging from 2” to 80” OD. Featuring an innovative split-frame design for seamless in-line installation, these tools provide the heavy-duty rigidity needed for tight spaces, extra-heavy walls, and heat exchanger facing.
Engineered for high-stability split-frame operations. These lathes ensure perfect weld preparation without heat-affected zones, even in tight clearance environments.

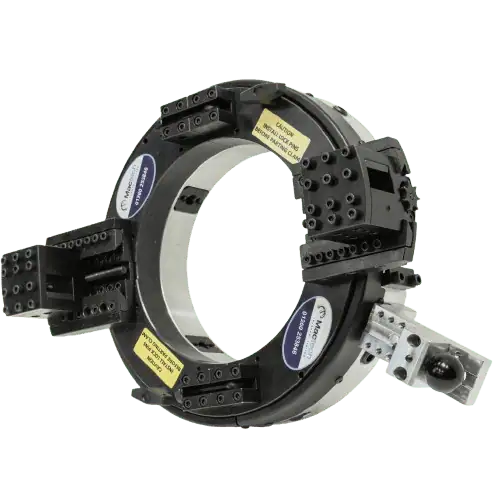

Low-clearance split frame designed for precision cutting and beveling in tight spaces where external clearance is minimal.
| Clamshell Model | 802LC | 804LC | 806LC |
|---|---|---|---|
| A - Machine I.D. | 2.88 | 5.00 | 7.12 |
| B - Machine O.D. | 7.10 | 9.98 | 12.10 |
| C - #2 Slides | 11.13 | 12.75 | 14.87 |
Ultra-stable series engineered for heavy-wall pipe applications, providing maximum rigidity and high-torque performance for industrial machining.
| Clamshell Model | 816USS | 820USS | 824USS |
|---|---|---|---|
| A - Machine I.D. | 16.50 | 20.50 | 24.50 |
| B - Machine O.D. | 23.40 | 27.40 | 31.40 |
| C - #3 Slides | 26.00 | 30.00 | 34.00 |

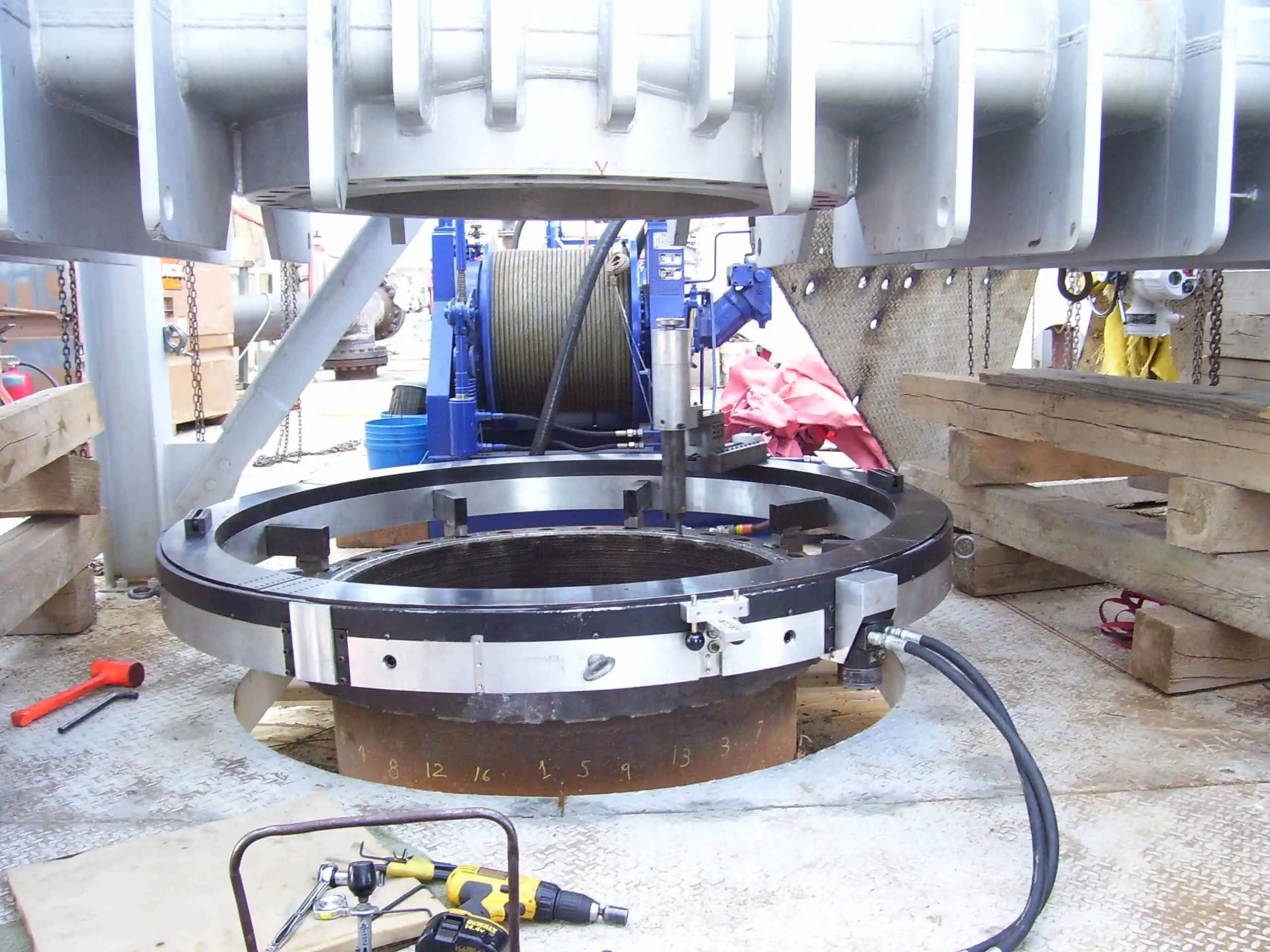

Large-diameter wheel drive system optimized for heavy-duty offshore and pipeline projects requiring consistent, high-speed orbital cutting.
| Clamshell Model | 832WD | 836WD | 843WD |
|---|---|---|---|
| A - Machine I.D. | 33.00 | 37.00 | 44.00 |
| B - Machine O.D. | 43.00 | 47.00 | 54.00 |
| C - #6 WD Slides | 48.61 | 52.61 | 59.61 |
Compare our range of portable split-frame lathes by pipe diameter and wall thickness to find the perfect match for your cold cutting and beveling needs.
| Series | Size Range | Drive | Drive |
|---|---|---|---|
| LC (802–816) | 2”–16” OD | Air / Hydraulic | Air / Hydraulic |
| USS (816–836) | 16”–37” OD | Air / Hydraulic | Air / Hydraulic |
| WD (832–860) | 33”–61” OD | Worm drive | Worm drive |
